Advanced Pond Sediment Removal Solutions

The best approach depends on the sediment’s volume, composition, pond access, liner condition, and the facility’s operating requirements. Biological additives may help manage some organic material over time, but they do not replace physical removal of established sediment. A sonar survey provides a reliable starting point by measuring sediment depth and volume, allowing operators to select an appropriate dredging, pumping, or robotic cleaning strategy.

Settlement time varies with particle size, water movement, inflow conditions, and the type of material entering the pond. Dense particles may settle within hours, while fine solids can remain suspended for days or longer. Sediment accumulation is typically a gradual process measured over months or years. Periodic mapping helps establish an infilling rate and identify when cleanup planning is warranted.

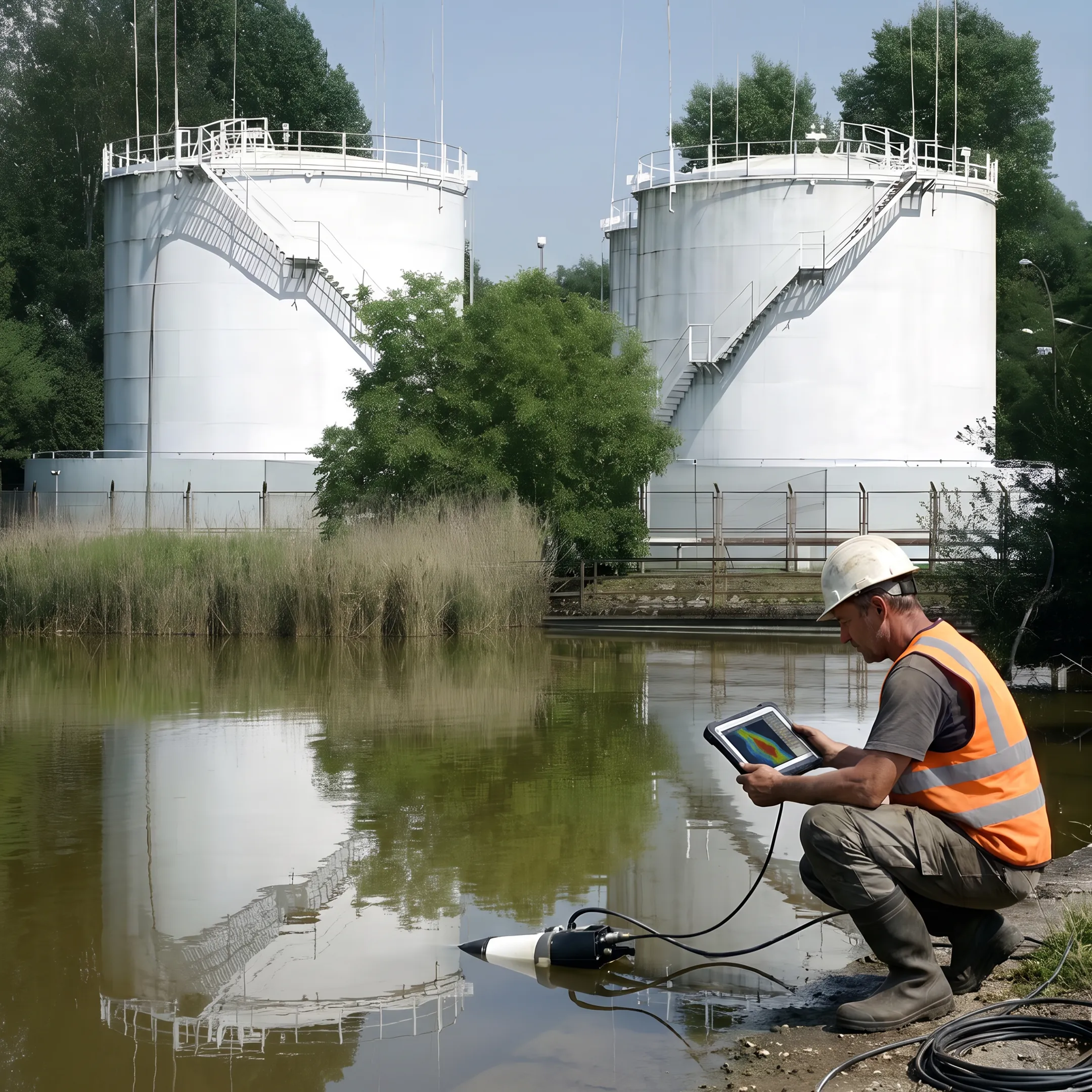

Sediment is commonly measured with bathymetric or sonar mapping. The survey collects water-depth readings across the pond, compares the current bottom profile with the expected bottom elevation, and calculates sediment thickness and total volume. GPS-referenced data can also show where deposits are concentrated. This information gives operators a defensible basis for prioritizing cleanup areas, estimating removal needs, and budgeting work.

Removal should be considered when sediment materially reduces available capacity, interferes with treatment or circulation, contributes to odor or water-quality concerns, or creates a foreseeable compliance or operational risk. Rather than relying on visual observations alone, operators should assess sediment thickness and volume. Mapping at regular intervals establishes the pond’s infilling trend and helps schedule work before capacity becomes critical.

In some applications, sludge can be removed while a pond, lagoon, or liquid-storage asset remains in operation. Feasibility depends on the pond’s design, access points, sediment characteristics, liner protection requirements, and equipment compatibility. Bristola’s remotely operated cleaning technology is designed for zero-human-entry applications, helping eligible facilities reduce disruption. A site-specific assessment determines the safest workable method.

A sediment mapping survey can provide average and maximum water depths, sediment thickness, estimated sediment volume, settlement variations, and a GPS-referenced map of the pond and surrounding area. Bristola uses advanced sonar and software to create a detailed 3D rendering for noncovered ponds and lagoons. These findings help operators understand current conditions, monitor infilling, and anticipate future dredging or cleaning costs.

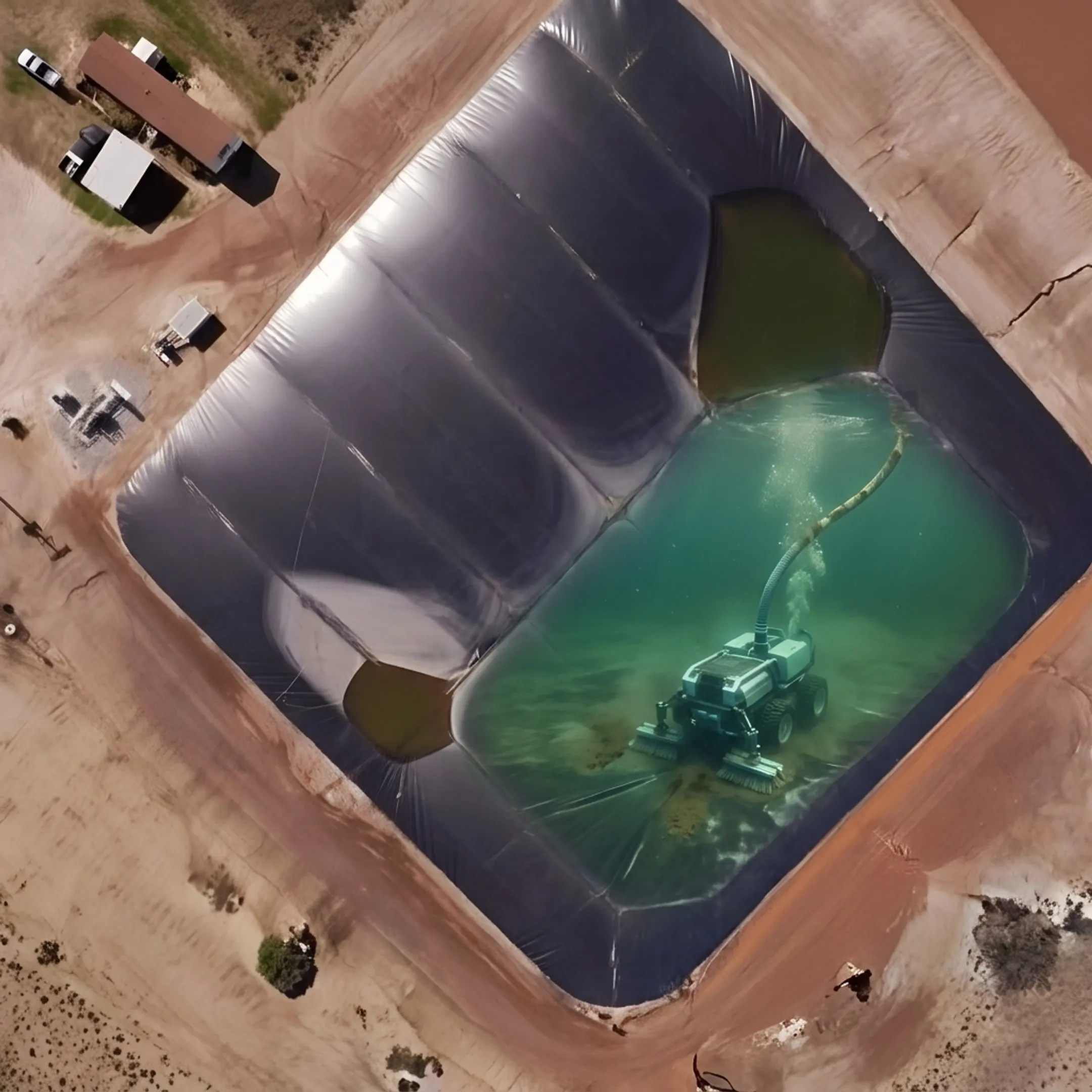

Robotic sludge removal can significantly reduce the need for workers to enter confined or hazardous liquid-storage environments. Bristola’s remotely operated system is designed to remove sediment through a controlled entry and recovery setup, limiting direct human exposure. Safety planning still requires site-specific review, equipment procedures, and applicable regulatory requirements, but eliminating human entry addresses a major traditional cleaning risk.

Inspection frequency should reflect the pond’s inflow, solids loading, treatment role, operating capacity, and history of sediment accumulation. Facilities with changing process loads or limited reserve capacity may benefit from more frequent monitoring. Establishing a baseline sonar map, then repeating it on a planned schedule, lets operators calculate infilling rates, spot changes early, and make maintenance decisions using measurable data rather than assumptions.
